Rainproof 50Hz 800KW / 1000KVA Container powerful diesel generator set
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Engine
Main features:
l Twelve-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 12V2000G65
|
Engine brand
|
MTU
|
|
Output Power (kw)
|
695
|
|
Cylinder No. & Config.
|
12,in “V”
|
|
Combustion System
|
direct injection
|
|
Compression Ratio
|
16:1
|
|
Displacement (L)
|
23.88
|
|
Bore X Stroke (mm)
|
130*150
|
|
Engine Speed (r/min)
|
1500
|
|
Speed Governing
|
Electronic / ADEC
|
|
Starting System
|
24V DC Electric
|
|
Filter System
|
Dry oil filter/Fuel filter/Oil filter
|
|
Cooling system
|
Water-cooled
|
|
Coolant capacity (L)
|
164
|
|
Fuel Consump. (g/kw·h)
|
198
|
|
Oil Capacity (L)
|
77
|
Control system
DSE4620 controller
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Product Tags:
|
|

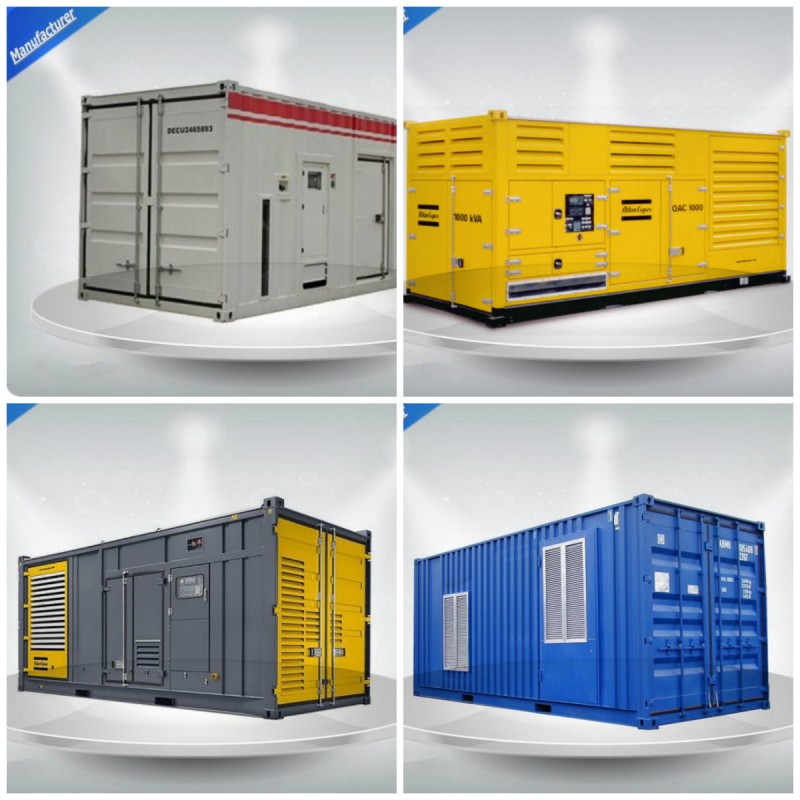

800KW 1000KVA Container Generator Set Images
|
